B-FLOW
System for Ensuring Proper Operation of a SEFFC
Description
The B-FLOW system, certified and patented by Rosso Officine, ENSURES the correct extraction flow rate as required by regulations for average smoke temperatures according to UNI 9494-2.
B-FLOW consists of a flow meter with a dedicated control panel for the F400 extractor. This system allows maintaining the extracted air flow rate according to the smoke temperatures (cold/hot) and thus ensures the proper functioning of the SEFFC in all situations.

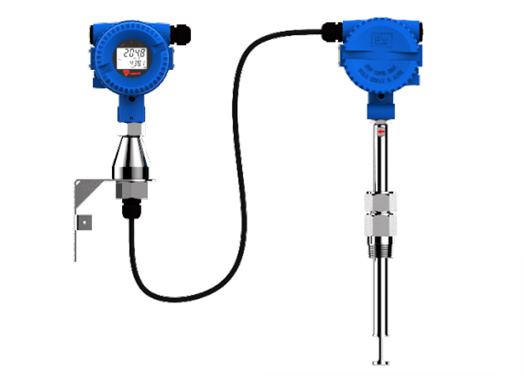

The flow meter will be installed on the smoke extraction duct before or after the extractor in a straight section.
Technical data
- Maximum temperature: 450°C
- Duct size: 1250x1000
- Air with soot
- Maximum flow rate: 108,000 Nm3/h
- Maximum speed: 30 Nm/s
- IP65 protection rating
- Pressure: 1.6 MPa
- Signal output: 4-20mA – RS485
This system is crucial for maintaining the required airflow in the smoke extraction system, especially under varying smoke temperatures, ensuring the SEFFC operates effectively and complies with regulatory standards. The B-FLOW system provides reliable monitoring and control of the extraction process to guarantee optimal performance and safety.
System for Ensuring Proper Operation of a SEFFC
Description
The B-FLOW system, certified and patented by Rosso Officine, ENSURES the correct extraction flow rate as required by regulations for average smoke temperatures according to UNI 9494-2.
B-FLOW consists of a flow meter with a dedicated control panel for the F400 extractor. This system allows maintaining the extracted air flow rate according to the smoke temperatures (cold/hot) and thus ensures the proper functioning of the SEFFC in all situations.
The flow meter will be installed on the smoke extraction duct before or after the extractor in a straight section.
This system is crucial for maintaining the required airflow in the smoke extraction system, especially under varying smoke temperatures, ensuring the SEFFC operates effectively and complies with regulatory standards. The B-FLOW system provides reliable monitoring and control of the extraction process to guarantee optimal performance and safety.

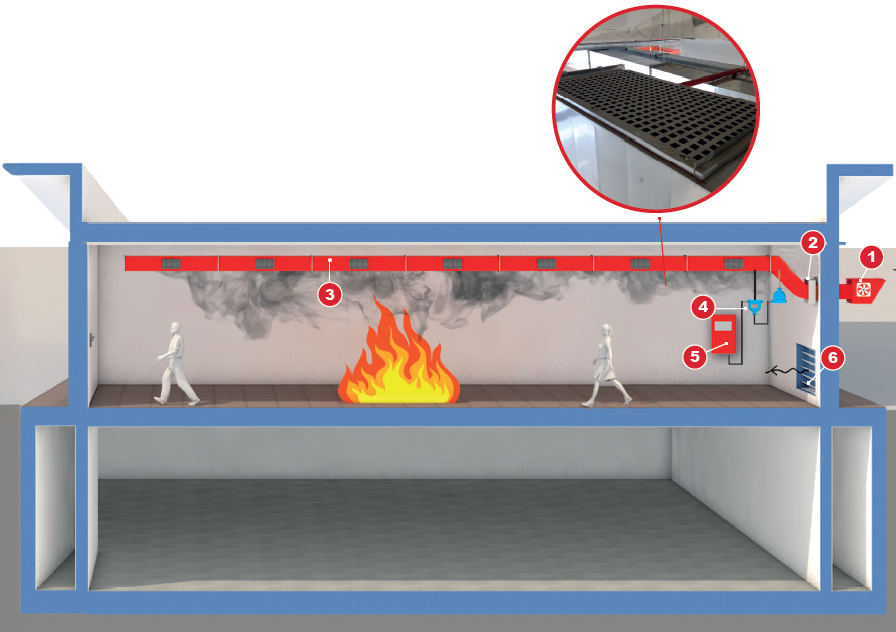

Components of the B-FLOW system
- Smoke extraction fan
- Smoke control damper
- Certified ducts with tarable grids B-Control ®
- Flow meter
- Power supply QE FIRE MODE
- Smoke control damper for air supply
Reference Standards
EN 12101-7
EN 12101-3
UNI 9494-2
Patent
B-FLOW
Certifications
